Eversolo dmp-a6 streamer Master Edition

Brand new sealed EVERSOLO DMP-A6 MASTER EDITION Streamer

2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

Eversolo presents with its DMP-A6 MASTER EDITION a streamer as powerful as it is intuitive and stylish. It will allow you to stream your music with ease while enjoying excellent sound quality, all controlled via a high-quality LCD screen and an ergonomic interface or from a dedicated mobile application.

EVERSOLO DMP-A6 MASTER EDITION VS DMP-A6 MASTER EDITION

Appearance:

DMP-A6 MASTER EDITION: Some gold details on the case

DMP-A6: Silver

Clock System:

DMP-A6 MASTER EDITION: 2 ACCUSILICON FEMTOSECOND oscillators with noise reduction and improved jitter

DMP-A6: 2 high precision crystal oscillators

OPA Chips:

DMP-A6 MASTER EDITION: OPA1612 with ultra-low noise

and low distortion 1KHz 0.000015%

DMP-A6: OPA1642

Two ES9038Q2M DAC chips

The audio decoding of the DMP-A6 is entrusted to two ESS ES9038 Q2M DAC chips, a high-performance model widely recognized by audiophiles. It also supports high-resolution audio streams up to PCM 32bit 768kHz and DSD512, as well as decoding of MQA files.

EVERSOLO DMP-A6 MASTER EDITION Streamer 2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

EVERSOLO DMP-A6 Streamer 2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

LCD Touch Screen

The high-definition 6″ LCD touch screen perfectly integrated into the aluminum chassis of the DMP-A6 Master Edition allows practical and ergonomic use. The user experience is intended to be as intuitive as possible. Thus, it is possible to access all player options and information through this beautiful interface.

High speed SSD support

The DMP-A6 Master Edition is equipped with an integrated memory 4GB DDR 32GB eMMC to be able to use many applications.

A slot compatible with a 4TB M.2 NVME 2280 SSD is provided for installation without removing the cover and allowing you to store your music locally and access it extremely quickly. In addition, the use of an SSD rather than a hard disk makes it possible to reduce the temperature and the vibrations of the device.

EVERSOLO DMP-A6 Streamer 2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

Low noise switching power supply module

The DMP-A6 Master Edition features a low-noise power supply module, several capacitors reduce interference. In addition, the filter circuit is specially designed for AC current input and reduces high frequency noise from 100KHz to 5MHz ensuring continuous power, smoother background noise and clearer musical details.

EVERSOLO DMP-A6 Streamer 2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

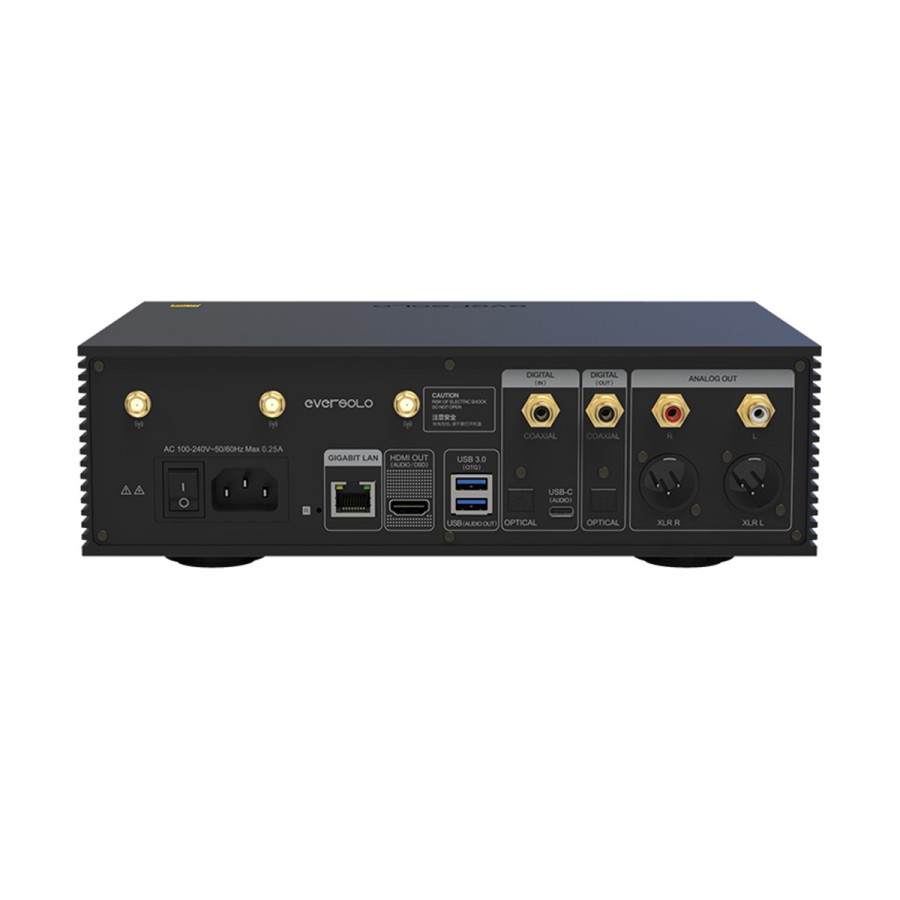

A complete connectivity

Particularly versatile, the DMP-A6 Master Edition covers a large majority of integration needs thanks to complete connectivity.

EVERSOLO DMP-A6 Streamer 2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

1
Antenna #1
2
Antenna #2
3
Antenna #3
4
Coaxial input
5
Coaxial output
6
Stereo balanced RCA output
7
Power switch
8
Power plug
9
Ethernet port RJ45
10
HDMI Output (Adio/DSD)
11
USB-A Outputs
12
Optical Toslink input
13
USB-C Input
14
Optical Toslink Output
15
Stereo balanced XLR output

Multichannel DSD HDMI DOH Chip
Equipped with DOH processing chips for HDMI, the DMP-A6 MAster Edition can transcribe a DSD master sound signal with high HDMI clock precision.

EVERSOLO DMP-A6 Streamer 2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

XMOS 316 & Dual Clock

The DMP-A6 Master Edition is equipped with a third-generation XMOS 316 USB interface ensuring perfect reception and decoding of the USB audio stream. This supports audio streams up to PCM 32bit 768kHz, DSD up to DSD512 and MQA. For optical ports (Coaxial and Toslink), they support DSD 64 (DoP) and PCM 192 24Bit.

The DMP-A6’s circuitry also uses two high-precision ACCUSILICON FEMTOSECOND clock oscillators to effectively eliminate jitter and ensure accurate and transparent audio reproduction.

EVERSOLO DMP-A6 Streamer 2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

MQA Decoder

The DMP-A6 Master Edition incorporates an MQA (Master Quality Authenticated) decoder, allowing you to play this type of file and enjoy sound quality as close as possible to the original studio recording. In addition, MQA streams are light enough to be streamed.

Bluetooth 5.0

The Bluetooth 5.0 reception of the DMP-A6 MAster Edition uses a Qualcomm QCC5125 chip. This supports the SBC, AAC, aptX, aptX LL, aptX HD and LDAC high-definition transmission codecs, allowing you to enjoy high-quality sound reproduction via Bluetooth.

EVERSOLO DMP-A6 Streamer 2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

EVERSOLO DMP-A6 Streamer 2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

A balanced pre-amp circuit

The DMP-A6 MAster Edition is equipped with balanced analog circuitry from the DAC chip to the stereo XLR and RCA outputs. This limits noise and channel separation provides better signal quality.

Compatible with most music streaming services

It incorporates many music services such as; Tidal, Qobuz, HighRes Audio Amazon music.

It is also compatible with third-party applications such as; Apple music, Spotify, Deezer, Napster, KKbox.

EVERSOLO DMP-A6 Streamer 2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

Little extras that make the difference: filters, VU meters and aluminum chassis

The DMP-A6 Master Edition’s DAC settings offer 7 filters applicable to your music listening preferences. In addition, custom VU meters are available for on-screen display itself built into a sturdy, modern-looking aluminum chassis.

EVERSOLO DMP-A6 Streamer 2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

Smart control app

The DMP-A6 Master Edition can be controlled from a smartphone or tablet using the free Eversolo Controller mobile app. This will allow you to simply access your music while enjoying a remote interface for easy use from your sofa.

Application EVERSOLO Controller Android

Application EVERSOLO Controller iOS

EVERSOLO DMP-A6 Streamer 2xES9038Q2M WiFi DLNA AirPlay 2 Roon Bluetooth 5.0 aptX HD 32bit 768kHz DSD512 MQA

Technical characteristics

SPECIFICATIONS

Product type Streamer
Touch screen LCD 6″
CPU ARM Cortex-A55 (Quad-core)
Internal memory 4Go DDR 32Go eMMC
Support SSD M.2 NVME 3.0 until 4 Tb (not included)
DAC Chip 2x ES9038 Q2M
Audio decoding PCM : 32bit 768kHz
DSD : DSD512
MQA
USB Interface XU316 (3rd generation)
HDMI decoding chip 2x DOH chips
Bluetooth Chips Qualcomm QCC5125 Bluetooth 5.0
AOP Chips OPA1612
CONNECTIVITY
WiFi Dual-band 2.4G 5G
Ethernet RJ45 (10/100/1000Mbps)
Input USB port USB-C 3.0
Systeme compatibility : Windows (7, 10), Mac, Android, IOS
Audio compatibility :Stereo DSD512, PCM 768KHz 32Bit, MQA
Output audio HDMI Multi-channel : DSD64 Native
Raw Multi-channel : PCM 192KHz
Input Bluetooth 5.0 QCC5125 Chip
Supported Codecs : SBC, AAC, aptX, aptX LL, aptX HD, LDAC
Digital audio inputs Bluetooth
1x USB-C
1x Coaxial
1x Optical Toslink
Digital audio outputs Bluetooth
1x Coaxial
1x Optical Toslink
1x HDMI
2x USB-A
Analog audio outputs 1* unbalanced stereo RCA
1* balanced stereo XLR
Integrated music services Tidal, Qobuz, Highresaudio, Amazon, WebDAV, UPnP
Compatible streaming services Air Play, DLNA, Roon Ready, Spotify, Tidal Connect, Qobuz Connect etc.
Supported network protocol NFS / SMB v1-v2-V3 / UPnP
MESUREMENTS
Balanced XLR output Output level: 5.2V
Frequency Response: 20Hz~20KHz(±0.15dB)
Dynamic range: > 128dB
SNR: >128dB
THD N: -125dB
Unbalanced RCA output Output level: 2.6V
Frequency response: 20Hz~20KHz (±0.2dB)
Dynamic range: > 124dB
SNR: >124dB
THD N: -124dB
GENERAL
Power supply 110-240V AC 50/60Hz
Rated Power 13W
Dimensions (L*P*H) 180*270*90mm
Color Black
Package 1* EVERSOLO DMP-A6 Master Edition
1* Power cable
1* USB cable
1* Screwdriver
1* User manual
