Klh model 5

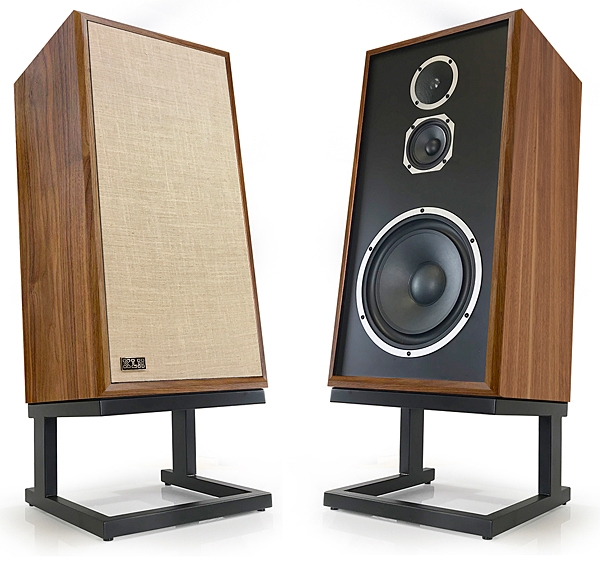

KLH Model 5 West African Mahogany with Old World Linen Grillemint (stands included)

The Model Five acoustic suspension speaker is known as one of the finest and most sought-after speakers for audiophiles, both new and seasoned. Our updated version of this classic speaker has real wood veneers, cast aluminum baskets, and uses acoustic suspension design principles made famous by founder Henry Kloss.

The KLH Model Five vintage speaker is offered in two gorgeous finishes (English Walnut and West African Mahogany), allowing the loudspeaker to blend with all home decor. The English Walnut Model Five comes with a beautiful Stone Wash Linen grille cloth that magnifies the rich finish of the real wood veneers. Meanwhile, our West African Mahogany finish is complemented by an Old-World Linen grille cloth that will stop you in your tracks. Want the option of both grille colors with the finish of your choosing? Don’t worry- you can purchase each style separately below!

Riser base and grilles included with speaker purchase

Description:

Iconic Mid-Century Modern Styling

Acoustic Suspension Design – The most accurate and linear enclosure design available today

Three-Position Acoustic Balance Control to tailor the loudspeaker’s output for the most difficult acoustic environments

Dedicated midrange driver to reproduce the critical mid-frequency band

Non-Resonant Die-Cast Aluminum Midrange & Woofer Frames

Die-Cast Aluminum Tweeter Faceplate

KLH cabinetry featuring a structurally reinforced ¾” MDF enclosure

Thirteen component network using high-quality iron-core inductors & Mylar capacitors

5° slant riser base made of powder coated 14-gauge steel (included with speaker purchase)

Low-profile magnet attached grille

10-Year Warranty

Specifications:

Frequency Response: 42Hz – 20,000Hz +/- 3dB

Low Frequency Extension: -10dB @ 32Hz

In-Room Sensitivity: 90.5dB @ 2.83V / 1M

Free-field Sensitivity: 87.5dB @ 2.83V / 1M

Power Handling: 200 Watts / 800 Watts Peak

Recommended Amplification: 20 Watts to 200 Watts

In-Room Maximum SPL: 112.3dB

Maximum Output @45Hz: 1

106dB

Impedance: 6 Ohms (3.5 ohm minimum @140 Hz)

Horizontal Dispersion: 140° Degrees

Features: Three-Position Acoustic Balance Control

Crossover Frequency: MF: 380Hz (2nd Order Electro-Acoustic)

HF: 2,850Hz (2nd Order Electro-Acoustic)

High Frequency Driver: 1″ Aluminum Dome with Soft

Rubber Suspension

Mid Frequency Driver: 4″ Pulp-Paper Cone with Reverse

Roll Rubber Suspension

Low Frequency Driver: 10″ Pulp-Paper Cone with Reverse

Roll Rubber Suspension, 2″ Diameter

Flat-Wire Voice Coil

Enclosure Material: Structurally Reinforced ¾” Medium

Density Fiberboard

Inputs: Five-Way Gold-Plated Binding Posts

Height: 34.25″ (87.0cm) w/ Included Riser Base

26.0″ (66cm) w/o Riser Base

Width: 13.75″ (35.0cm)

Depth: 13.0″ (33.0cm) w/ Included Riser Base

11.5″ (29.2cm) w/o Riser Base

Weight: 44Ibs. (20.0kg) w/o Riser Base

52Ibs. (23.6kg) w/ Included Riser Base

Included Accessories: 5° Slant Riser Base
