Hana ml – low output cartridge

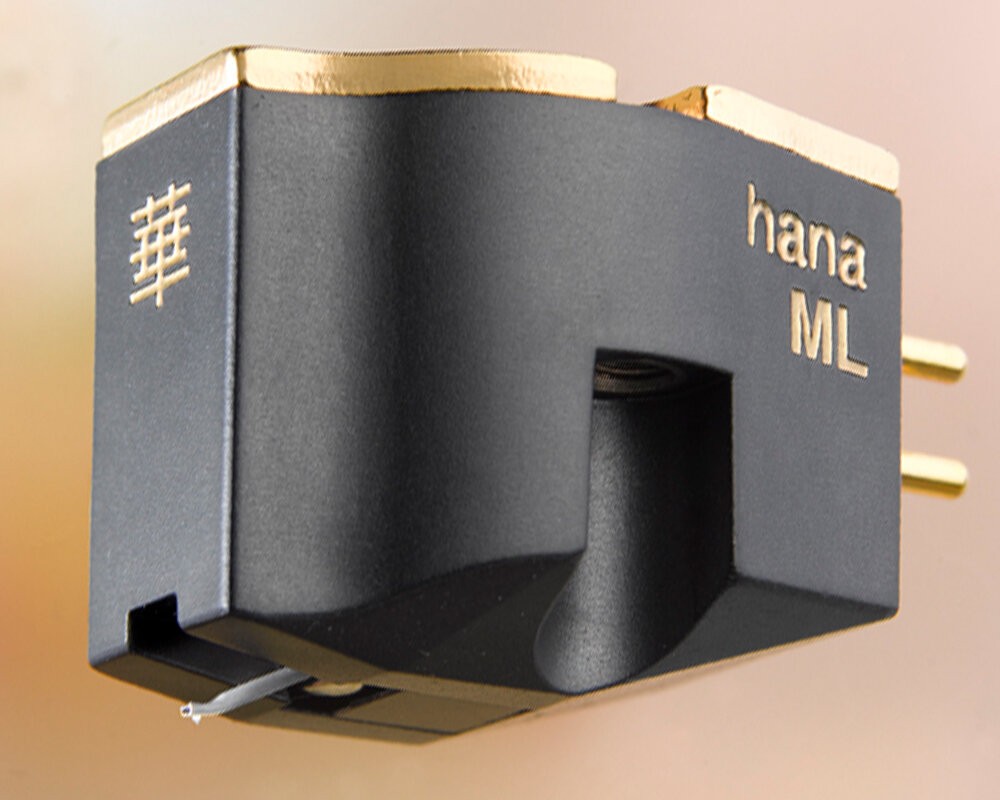

Brand new HANA ML – Low Output Phono Cartridge

Building upon the foundation of the critically acclaimed HANA sound, the ML aspires toward affordable perfection and represents the further evolution of the “Brilliant and Gorgeous” quality that has earned HANA its worldwide reputation.

M Series Nude Microline stylus – Higher Specification Part

Befitting its name, the M Series uses a Nude Microline stylus, mimicking the cutting stylus and fitting more precisely into the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and resolution.

High Purity copper wire – Higher Specification Part

Very high-purity copper wire is used for winding the ML coil with a new low-impedance generator for optimized performance with a broader range of phono preamps

Delrin© cartridge body – Advanced Materials

The M Series cartridge body is injection molded from Delrin©, a high-tech polymer with improved mechanical characteristics for better resonance damping, to reveal more low-level information and enhance dynamic range.

Cryogenic Processing – Unique Technical Treatment

Cryogenic processing is Cold Annealing at near absolute zero temperature that restructures metals at the molecular level, especially important in the Alnico-based magnetic electro-motive circuit (cartridge signal generator). The M Series parts treated include the front yoke as well as the center and rear components. The result is a more precise and controlled magnetic flux field for greater linearity and musical sound quality.

Brass Cap with Threaded fittings – Superior Mechanical Interface

The Delrin© cartridge body features a machined brass cap providing constrained mode layer damping and its heavier 9.5 gram weight provides expanded compatibility with a wider range of tonearms and turntables.

Built into the M Series Delrin© cartridge body are metal threaded fittings for headshell mounting hardware, offering easier attachment and a superior mechanical interface for better bass and dynamics.

Specs:

Stylus: Nude Microline

Cantilever: Aluminium

Magnet: Alnico

Coil Wire: Very High Purity Copper

Cartridge Housing/Base: POM/Brass

Output Level: 0.2mV (ML)

Output Level: 2.0mV (MH)

Channel Balance: <1dB/1kHz

Rec. Tracking Force: 2g

Trackability: 70µ/2g

Compliance: 10×10-6 cm/dyne

Channel Separation: 30dB @ 1kHz

Frequency Range: 12Hz to 45kHz

Impedance: 8Ω (ML)

Impedance: 100Ω (MH)

Suggested Load Impedance: >100Ω (ML)

Suggested Load Impedance: 47kΩ (MH)

Cartridge Weight: 9.5g

Body Colour: Black
